Understanding the Image Formed by a Concave Mirror: Key Concepts, Types, and Practical Applications

Concave mirrors, also known as converging mirrors, are curved mirrors that curve inward, resembling a portion of a sphere.

These mirrors are used in various applications, from simple household items like makeup mirrors to complex scientific instruments such as telescopes and satellite dishes.

Understanding how a concave mirror forms images is crucial for students, enthusiasts, and professionals in fields like physics, engineering, and optics.

In this blog post, we will explore the key concepts behind concave mirrors, explore the types of images they form, and discuss their practical applications.

What is a Concave Mirror?

A concave mirror is a spherical mirror where the reflective surface is curved inward, resembling the inside of a bowl.

The mirror’s center of curvature (C) and the focal point (F) are crucial for understanding the image formation process.

The focus is located at half the distance from the mirror’s surface to the center of curvature.

• Shape: Inward-curved (like a cave)
• Reflective Surface: Curved inward toward the center of curvature
• Focal Point (F): The point where parallel light rays converge after reflecting from the mirror

Concave mirrors reflect light and create images based on the distance between the object and the mirror’s focal point.

Key Concepts Behind Image Formation in Concave Mirrors

Concave mirrors form images through the reflection of light. When parallel rays of light hit the concave mirror, they reflect and converge at the focal point. The position of the object relative to the mirror determines the size, type, and orientation of the image.

Ray Diagram for Image Formation

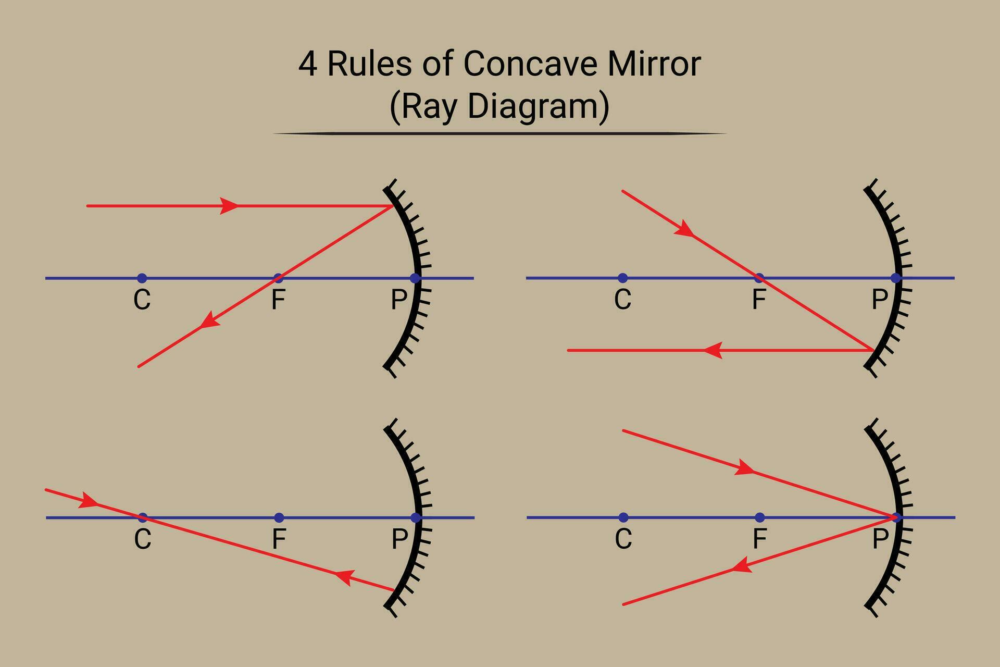

To understand the image formed by a concave mirror, let’s look at the essential ray diagram:

• A parallel ray (parallel to the principal axis) strikes the mirror and reflects through the focal point (F).

• A ray passing through the focal point before striking the mirror reflects back parallel to the principal axis.

• A ray that strikes the mirror’s center of curvature reflects back along the same path.

By analyzing the intersection of these rays, we can determine the position, size, and nature of the image.

Types of Images Formed by a Concave Mirror

The type of image formed by a concave mirror depends on the distance of the object from the mirror’s focal point. There are six possible scenarios based on the object’s position:

1. Object Beyond the Center of Curvature (C)

• Image Type: Real, Inverted, and Diminished
• Position: Between F and C
• Explanation: When the object is placed beyond the center of curvature, the reflected rays converge to form a real image. This image is smaller than the object and is inverted.

2. Object at the Center of Curvature (C)

• Image Type: Real, Inverted, and Equal in Size
• Position: At the center of curvature (C)
• Explanation: If the object is at the center of curvature, the image formed will be real, inverted, and have the same size as the object.

3. Object Between the Center of Curvature (C) and the Focal Point (F)

• Image Type: Real, Inverted, and Magnified
• Position: Beyond C
• Explanation: If the object is placed between the center of curvature and the focal point, the image formed is real, inverted, and magnified (larger than the object).

4. Object at the Focal Point (F)

• Image Type: No Image (Rays Do Not Meet)
• Position: At infinity
• Explanation: When the object is placed exactly at the focal point, the reflected rays are parallel and do not meet. Thus, no image is formed.

5. Object Between the Focal Point (F) and the Mirror

• Image Type: Virtual, Upright, and Magnified
• Position: Behind the mirror
• Explanation: When the object is placed between the focal point and the mirror, the image formed is virtual, upright, and magnified. The image appears to be behind the mirror and cannot be projected onto a screen.

6. Object at Infinity

• Image Type: Real, Inverted, and Diminished
• Position: At the focal point (F)
• Explanation: An object placed at infinity (like distant stars) will create a real, inverted image at the focal point. The image is diminished and cannot be seen with the naked eye.

To stay updated with the latest GK and Current Affairs infographics, follow our official Instagram and Facebook page and prepare for exams easily.

Ray Diagrams for Image Formation

Here are the key ray diagrams based on different object positions relative to the concave mirror:

1. Object Beyond C: Image formed between F and C, real, inverted, and diminished.
2. Object at C: Image formed at C, real, inverted, and equal in size.
3. Object Between C and F: Image formed beyond C, real, inverted, and magnified.
4. Object at F: No image (rays do not converge).
5. Object Between F and Mirror: Image formed behind the mirror, virtual, upright, and magnified.

Practical Applications of Concave Mirrors

Concave mirrors are used in a variety of practical applications across different fields. Here are some notable examples:

1. In Telescopes

Concave mirrors are integral to reflecting telescopes, as they gather light from distant stars and focus it on an eyepiece. These mirrors are used to capture and focus light from faraway objects to form clear, magnified images.

2. In Satellite Dishes

Satellite dishes use concave mirrors (parabolic reflectors) to collect and focus signals onto a receiver. This allows for clear communication signals to be transmitted from satellites to Earth.

3. In Makeup Mirrors

Concave mirrors are commonly used in makeup mirrors to provide a magnified image of the face. These mirrors help users see their face more clearly and in greater detail.

4. In Flashlights and Headlights

Concave mirrors are used in flashlights and car headlights to focus light into a beam. The light source is placed at the focal point, and the concave shape directs the light forward, enhancing visibility.

5. In Solar Furnaces

Concave mirrors are used in solar furnaces to concentrate sunlight onto a single point. This intense concentration of light can generate high temperatures, which are used for scientific experiments or to generate power.

6. In Optical Instruments

Concave mirrors are used in microscopes and cameras for focusing light onto a sensor or film. They are also used in scientific instruments where precision image formation is critical.

🔰More About Optical Instruments

Conclusion

Concave mirrors play a vital role in various technological and scientific applications. Their ability to form both real and virtual images, along with the versatility of image sizes (diminished, equal, magnified), makes them indispensable in fields ranging from astronomy to everyday tools like makeup mirrors. By understanding the principles behind the image formation process, you can appreciate how concave mirrors are used to manipulate light for practical purposes.

If you’re a student or professional working with optics, a clear grasp of the different types of images formed by concave mirrors will help you apply this knowledge in real-world scenarios effectively.
